2010fieldGame Description – Breakaway

Breakaway is a game played on the field. Two alliances, one red and one blue, composed of three teams each, compete in each match. The object of the game is to score higher than your opponent by shooting balls into a goal, climbing on the alliance tower or platform, or by lifting an alliance robot off of the playing surface.

Each match is 2 minutes and 15 seconds long. An autonomous period starts each match during which the robots are controlled by pre-programmed instructions. The autonomous period is followed by the teleoperated period during which the drivers assume control of the robot. The robots continue to play the game until the teleoperated period is over. The last 20 seconds of the match is called the finale period.

Scoring

  • Shooting Balls Into Goal – 1 point
  • Hanging On The Tower In Finale Period – 2 points
  • Sitting On Platform In Finale Period – 2 points
  • Hanging Off An Alliance Robot In Finale Period – 3 points

Robot Description

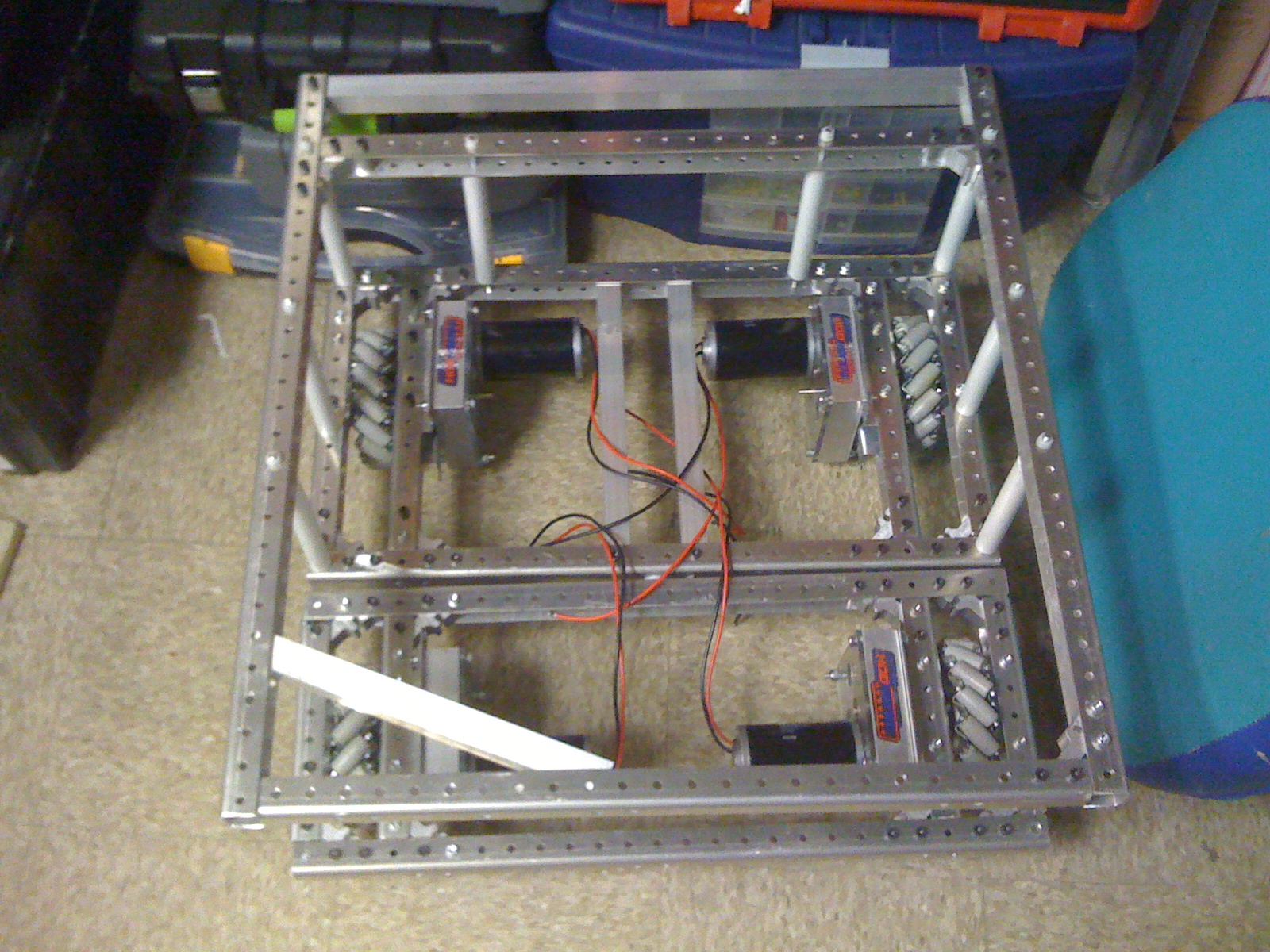

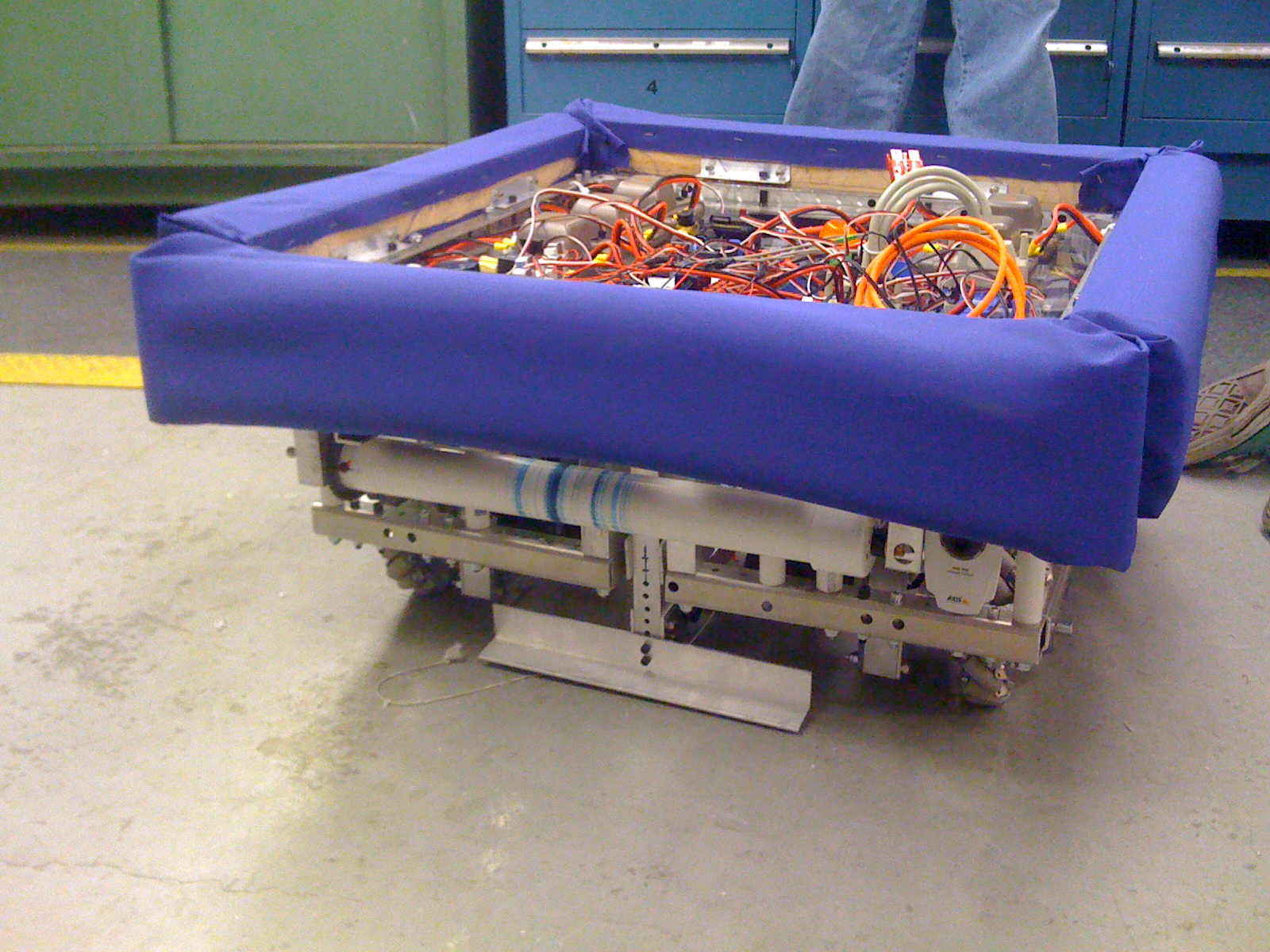

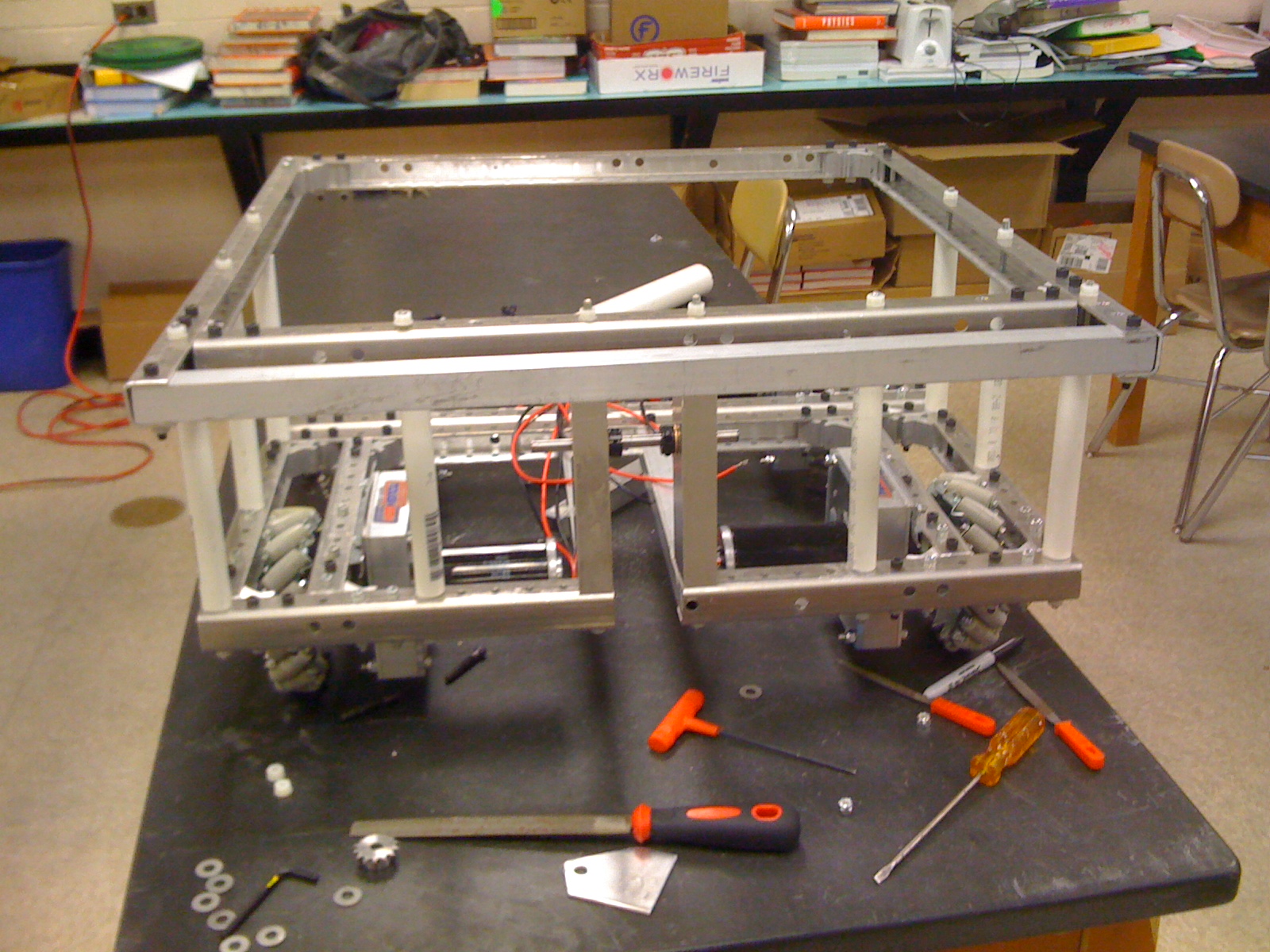

IMG_0791D-Fence 5.0

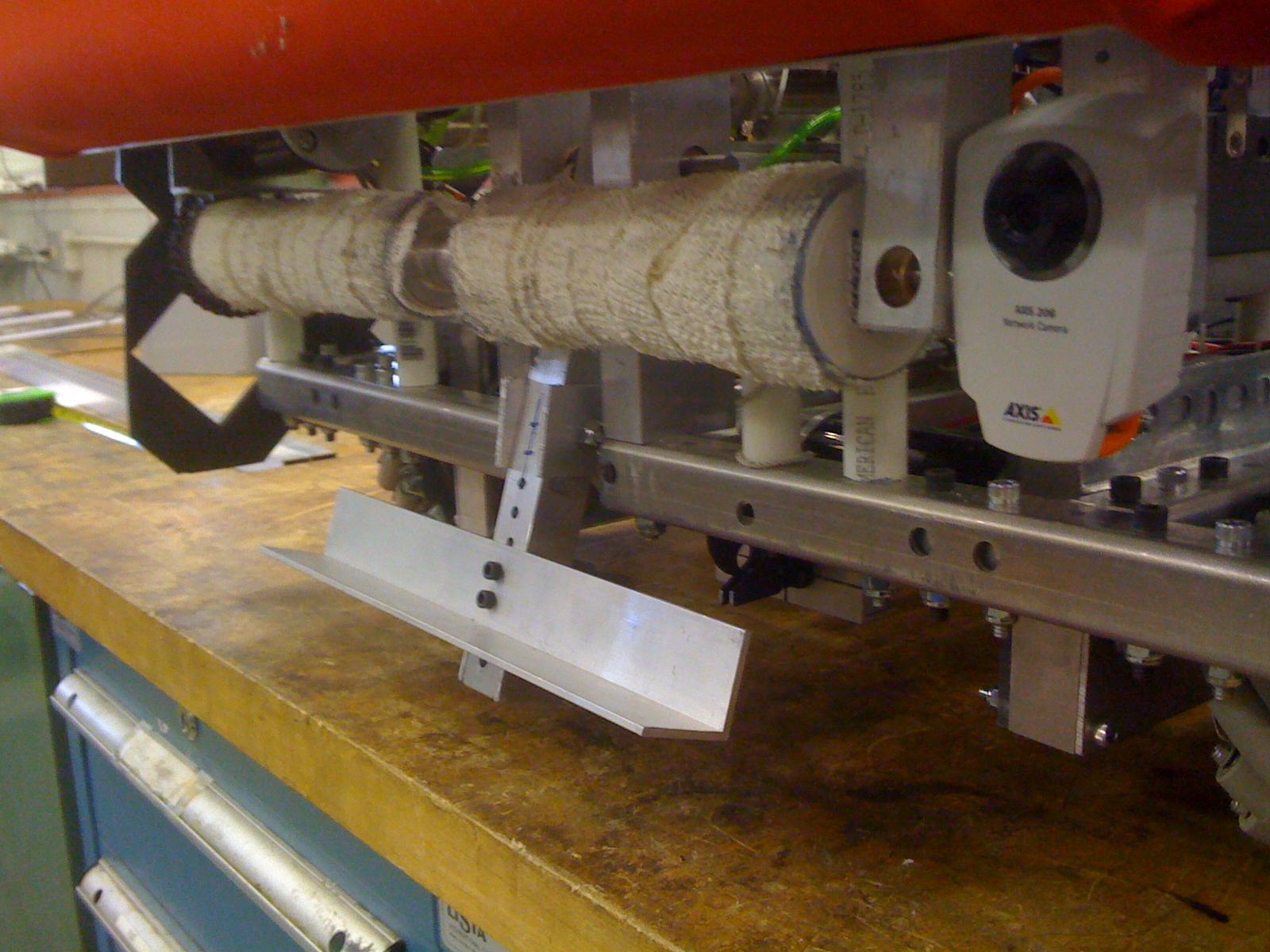

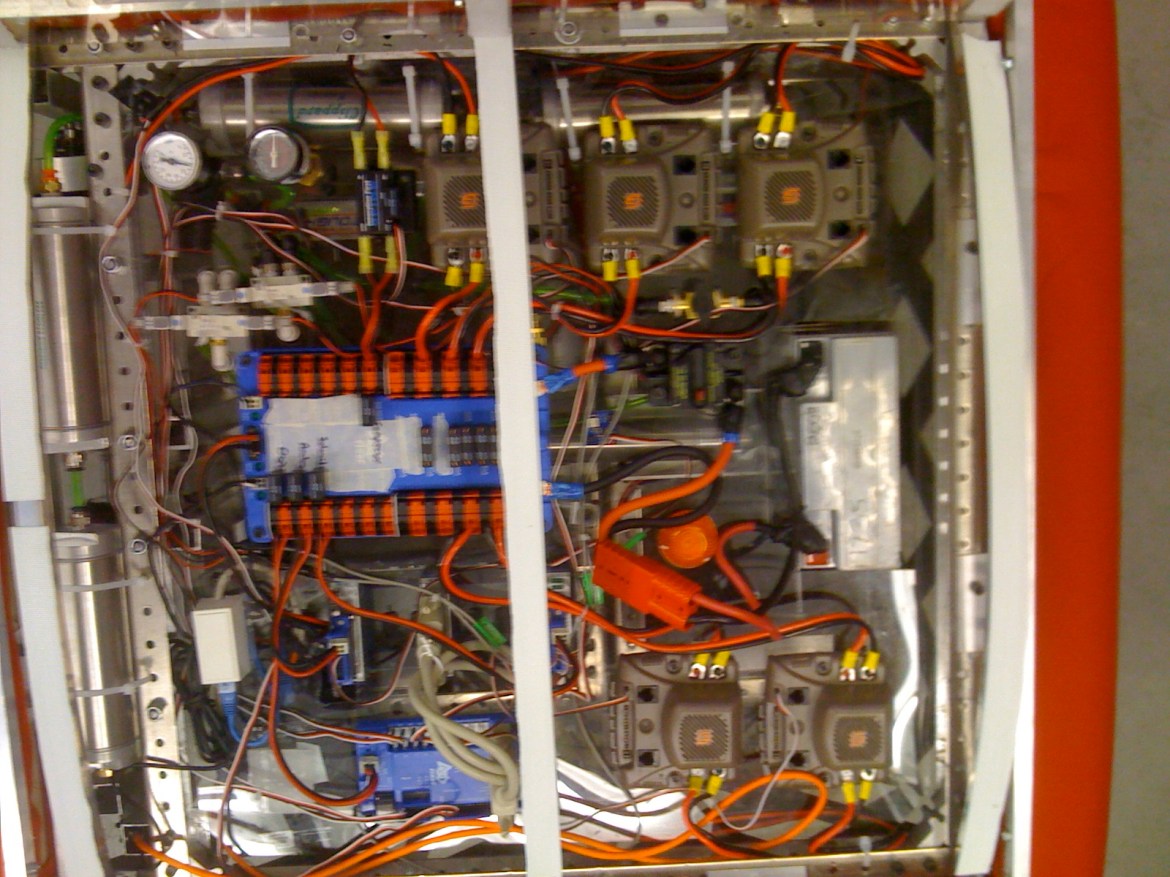

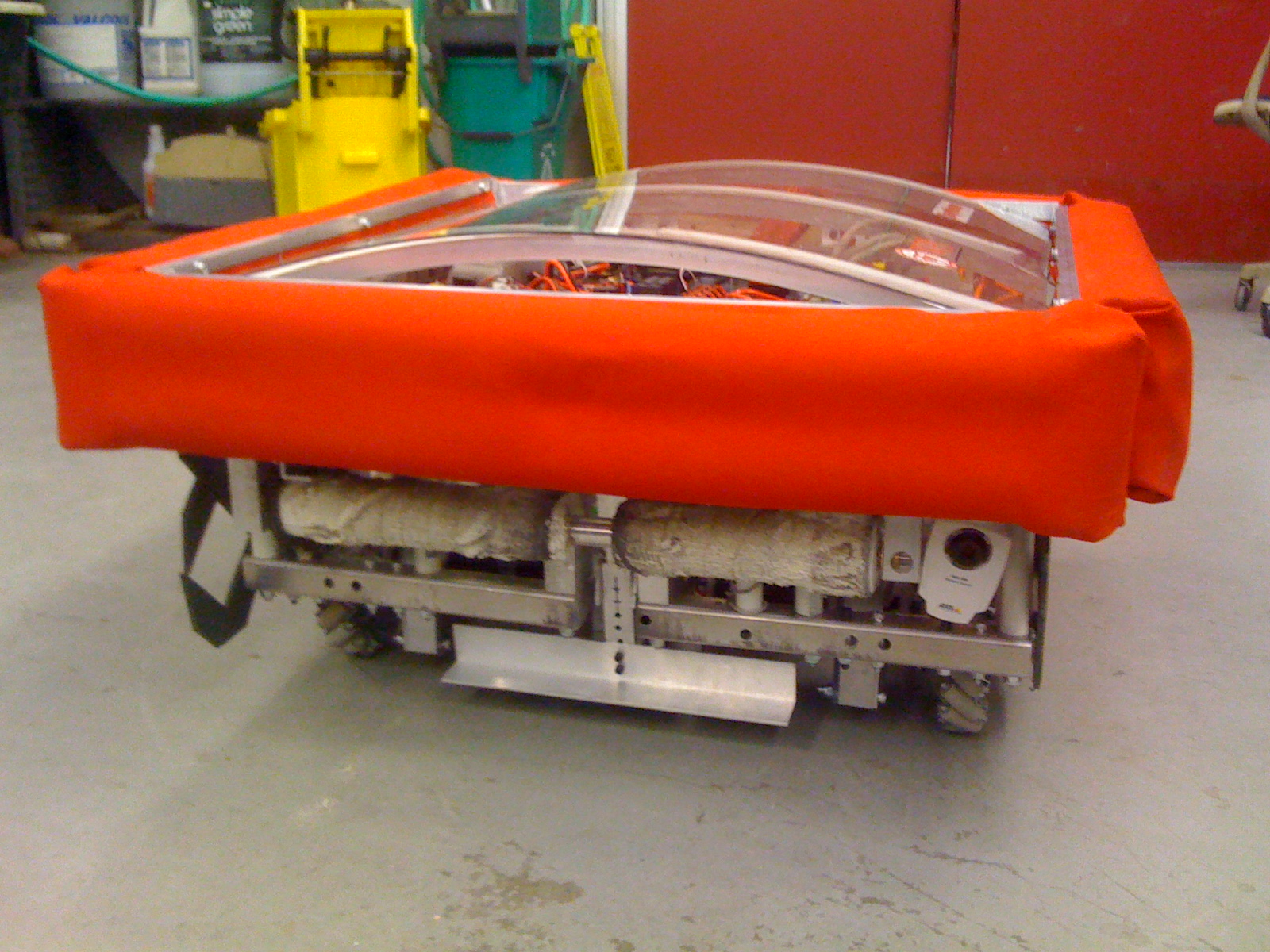

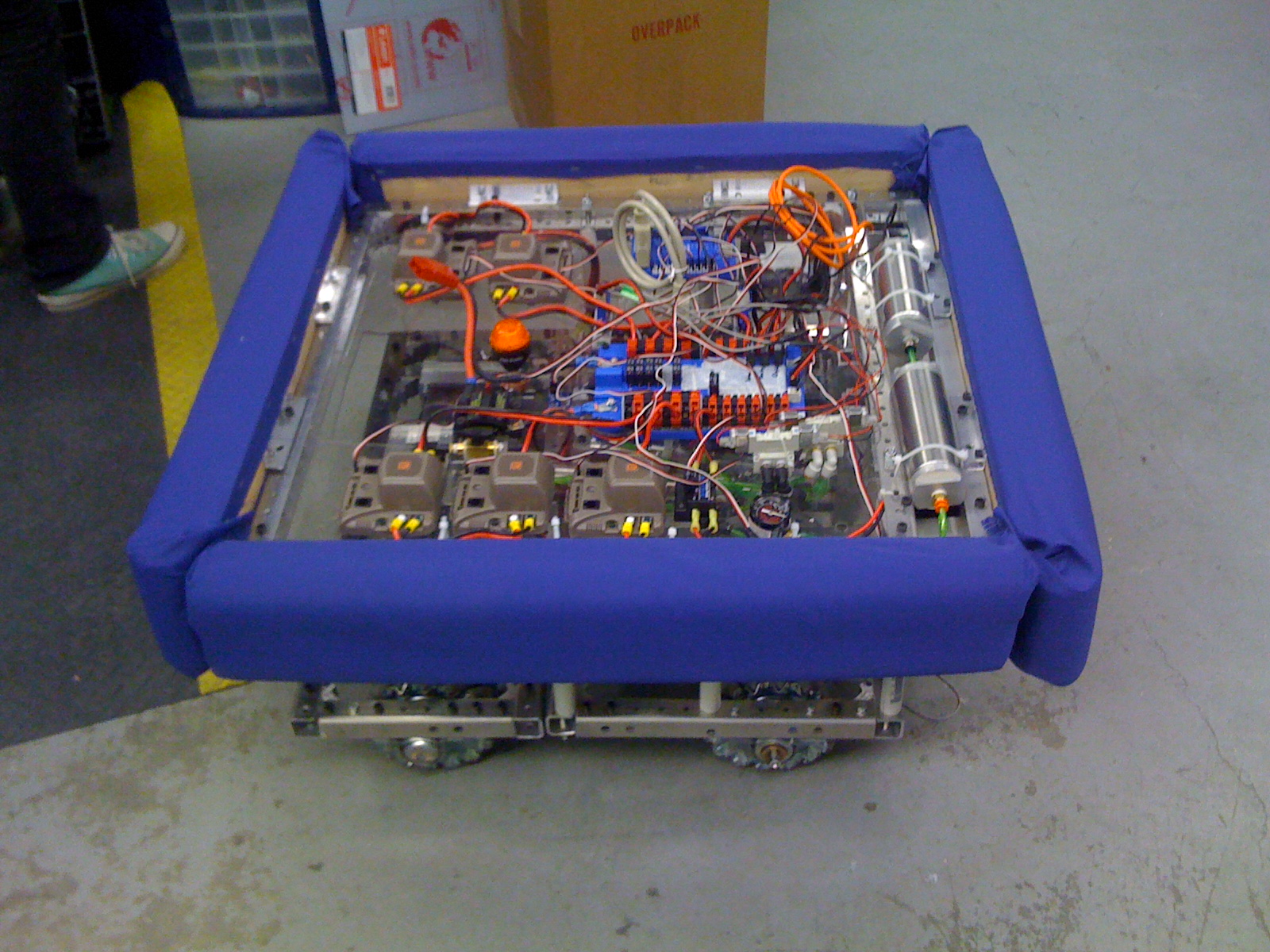

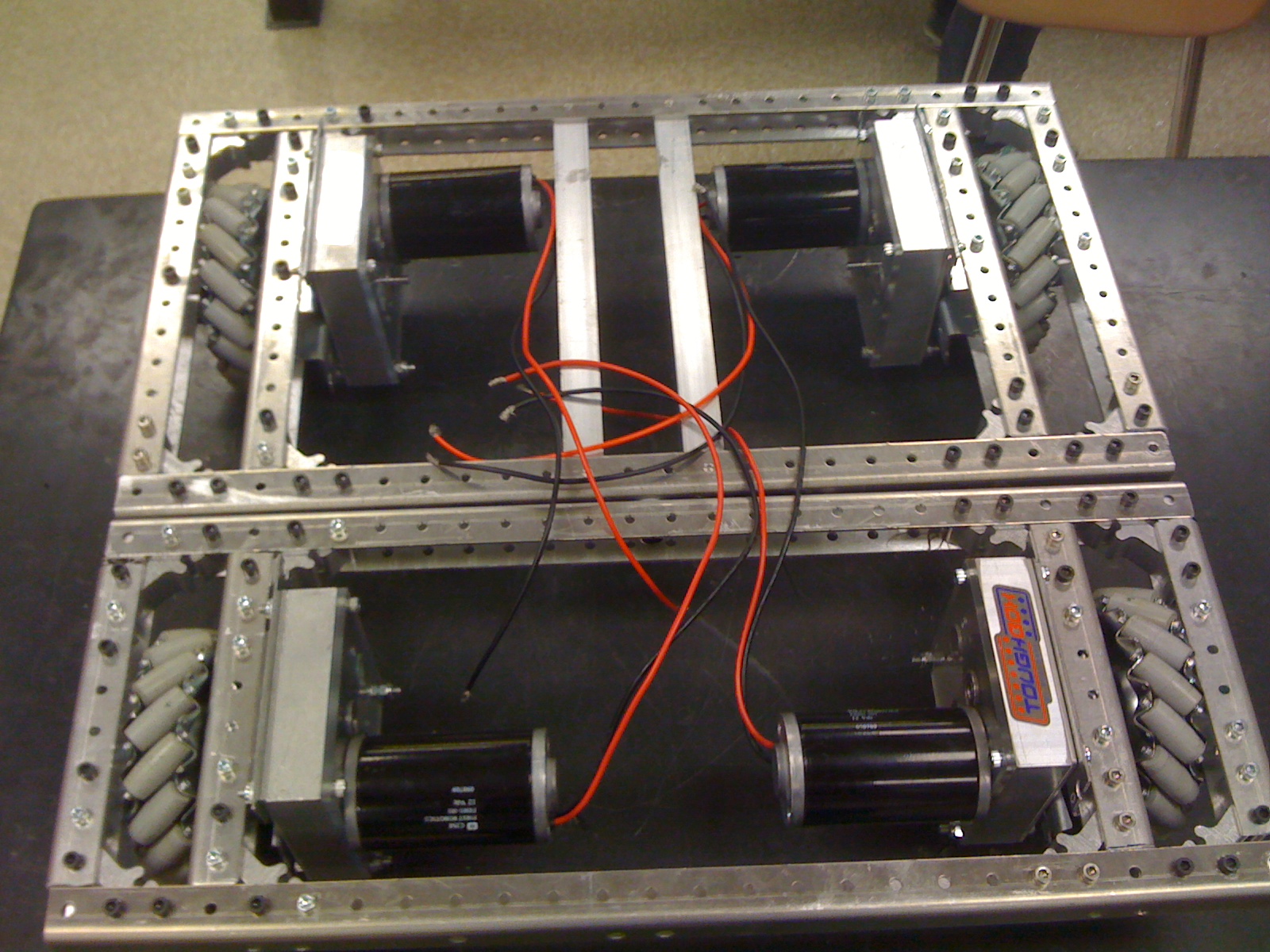

The robot was built to be small so it could fit under the tower. The driveline makes use of mecanum wheels and a gyro so the controller could drive the robot in field orientation. On the front of the robot is a roller that would attempt to keep the ball in place while the robot drove around. Below the roller was a kicker. The kicker is connected to a pneumatic piston that would fire but prevented from going anywhere until another piston released. This would allow for an elastic buildup and make a better shot.

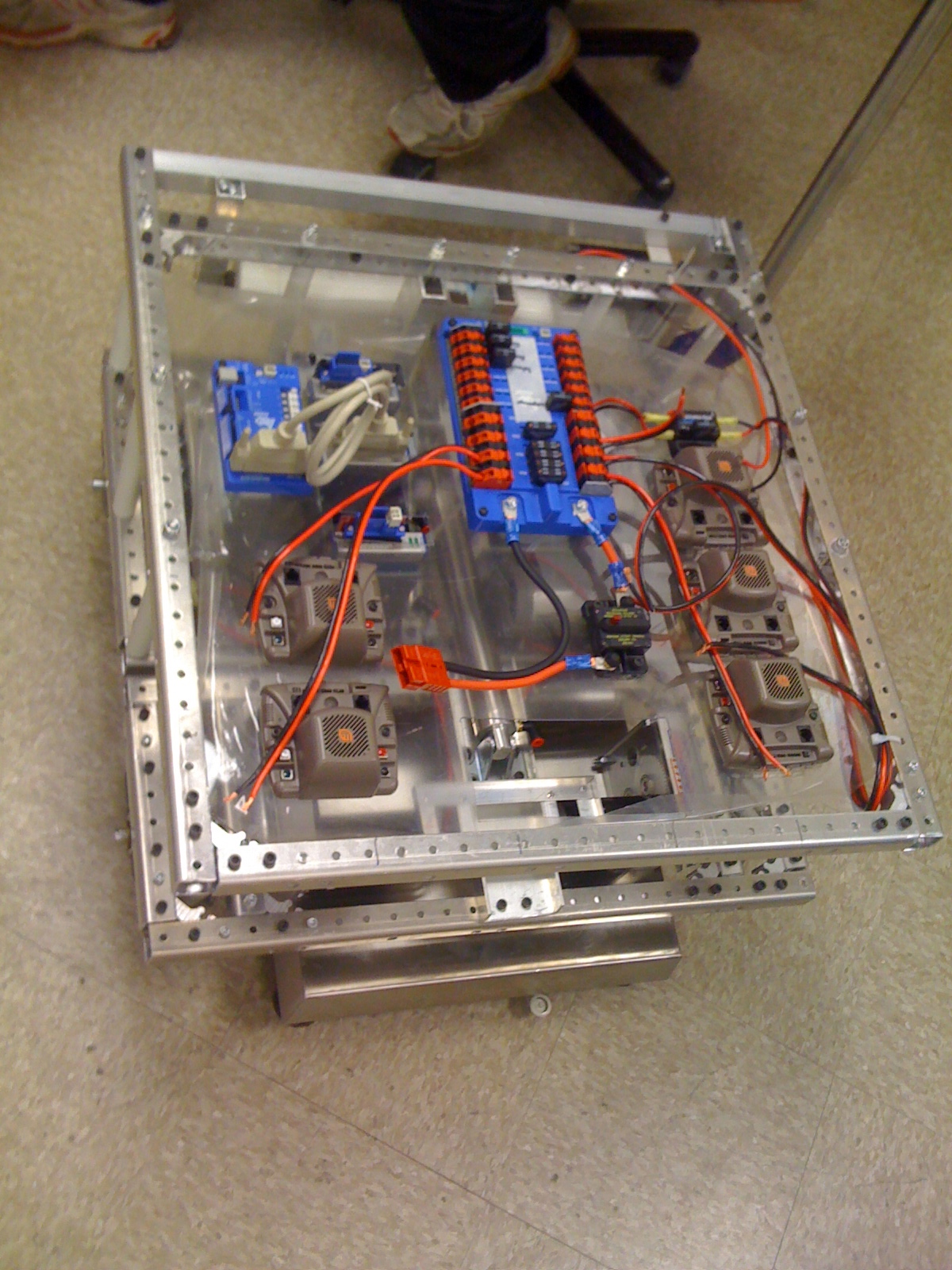

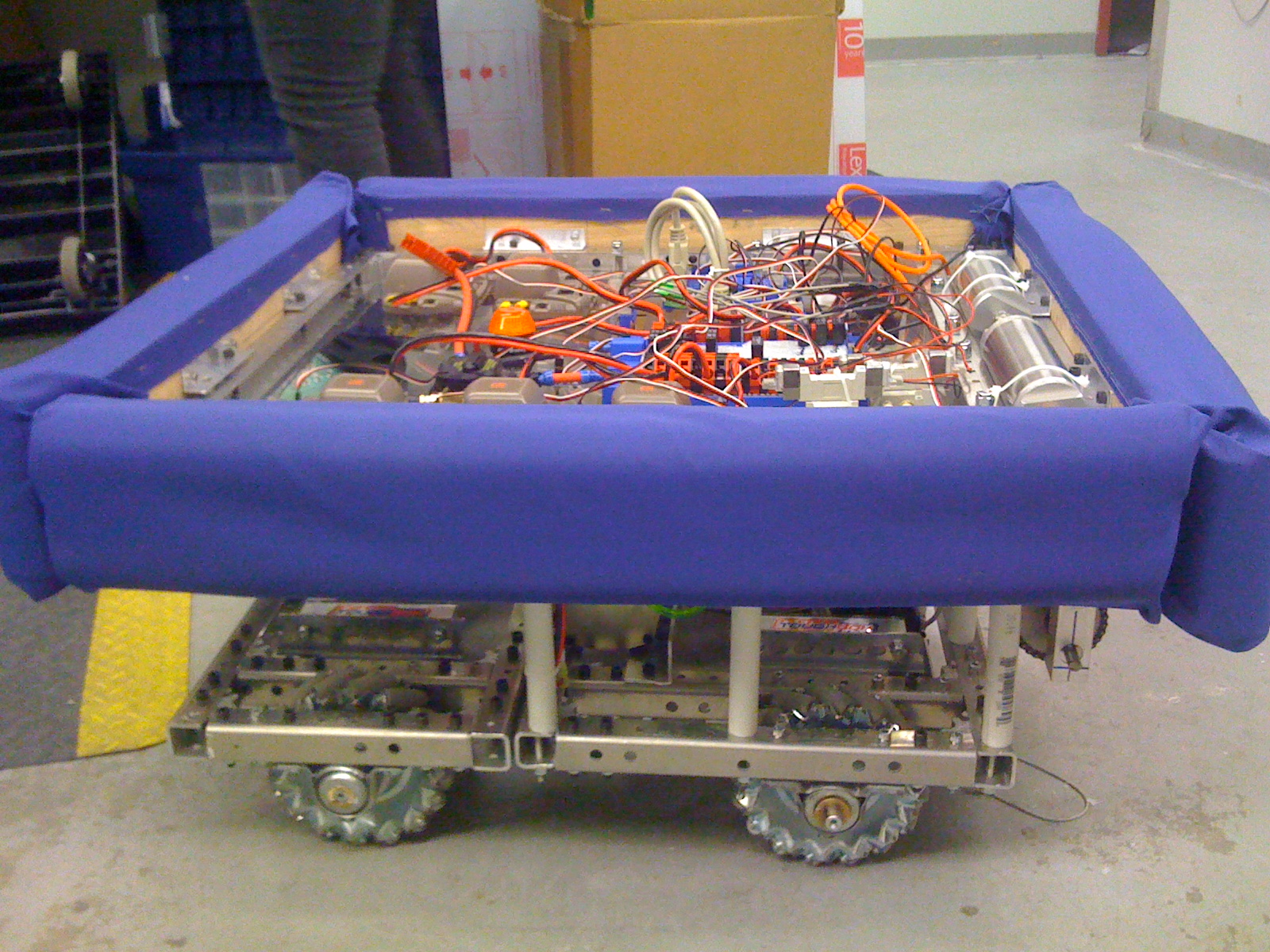

IMG_0854D-Fence 5.1

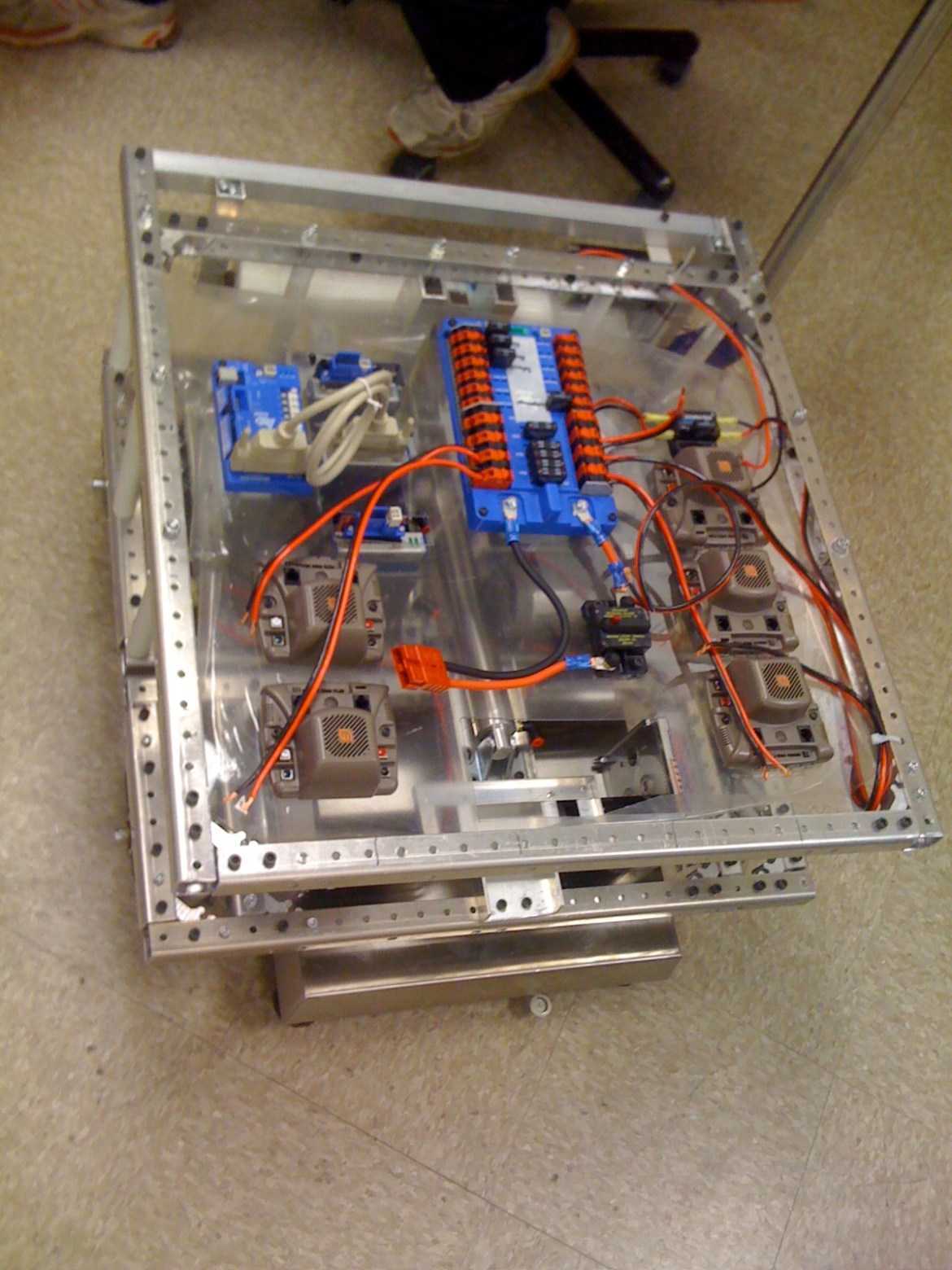

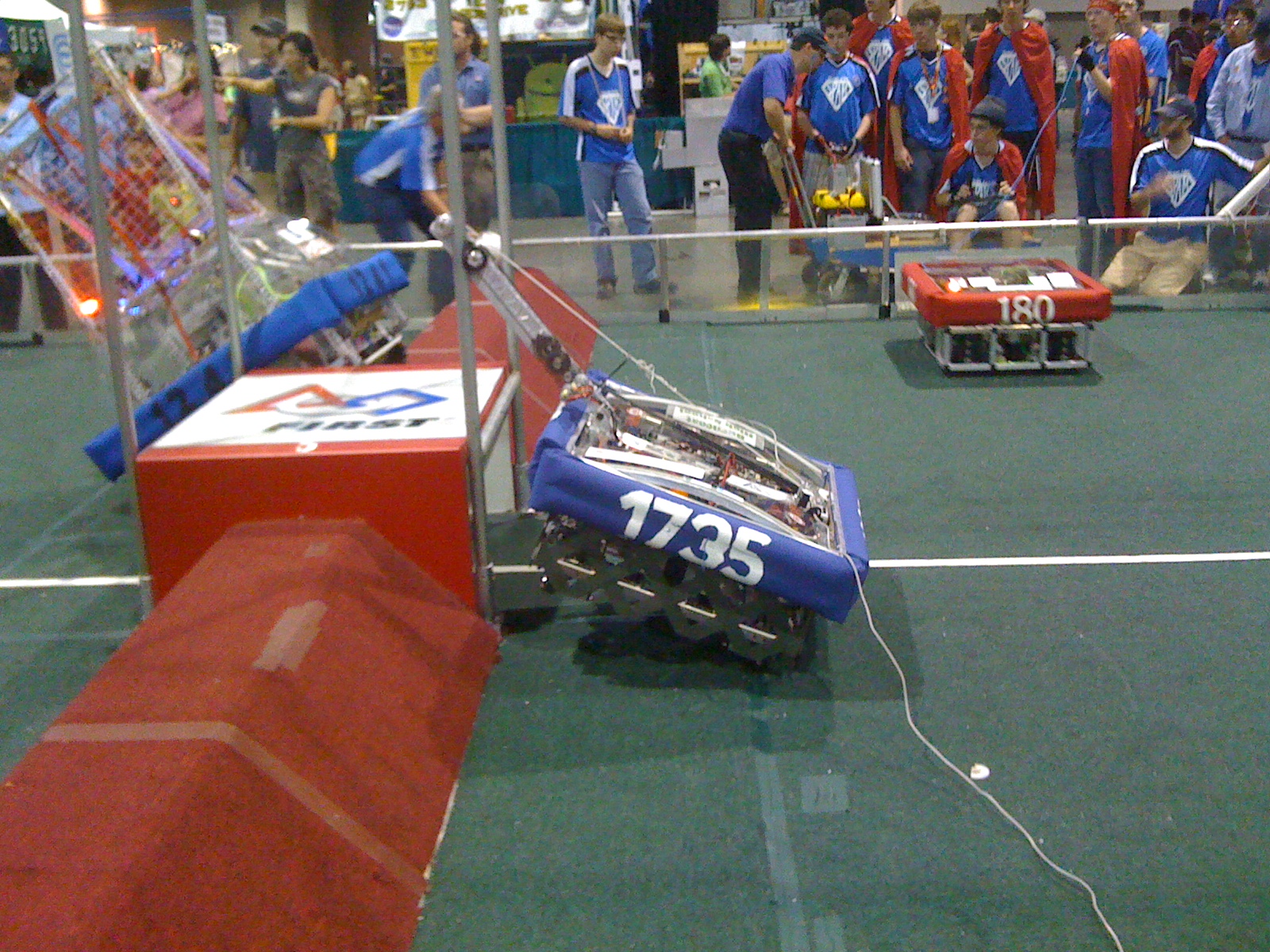

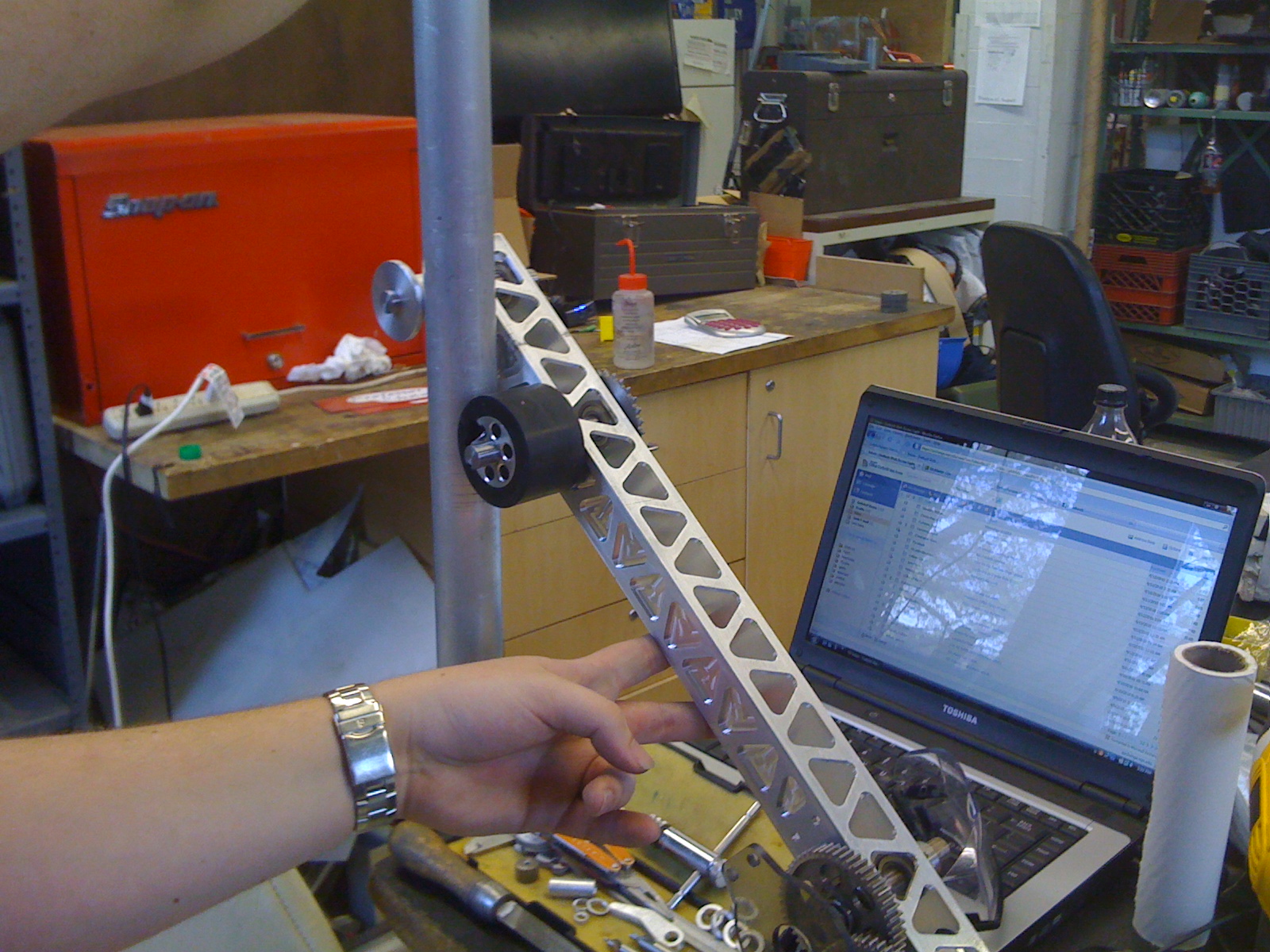

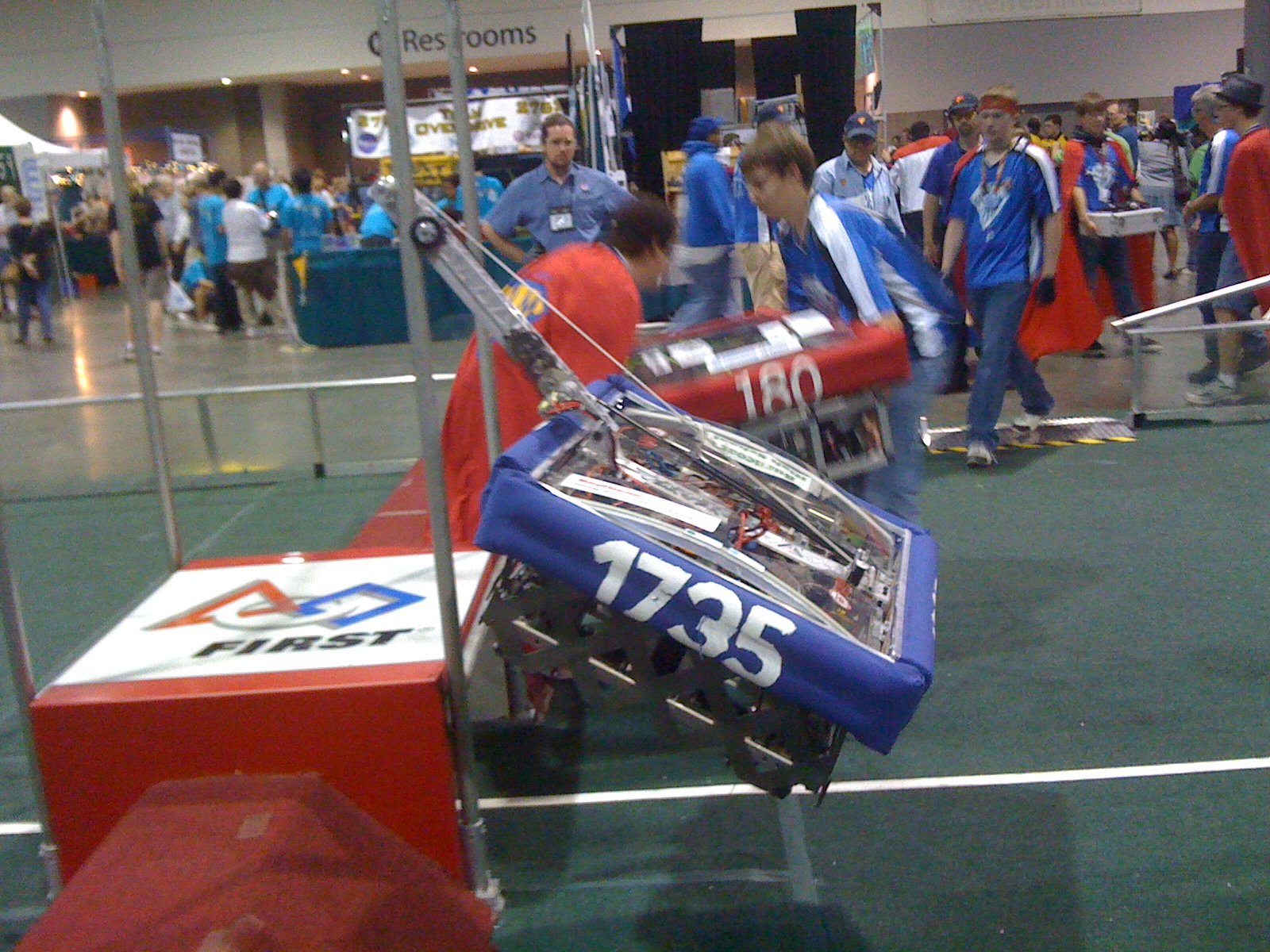

After the WPI Regional it was determined that the robot needed to be able to climb the tower. To do this an arm was built and then brought to the Championships and attached across the center. The arm had two wheels, one powered, where the pole would go between it and then power the robot up the pole.

Also for the Championships the gearbox was changed to have a slower output to make it easier to control.

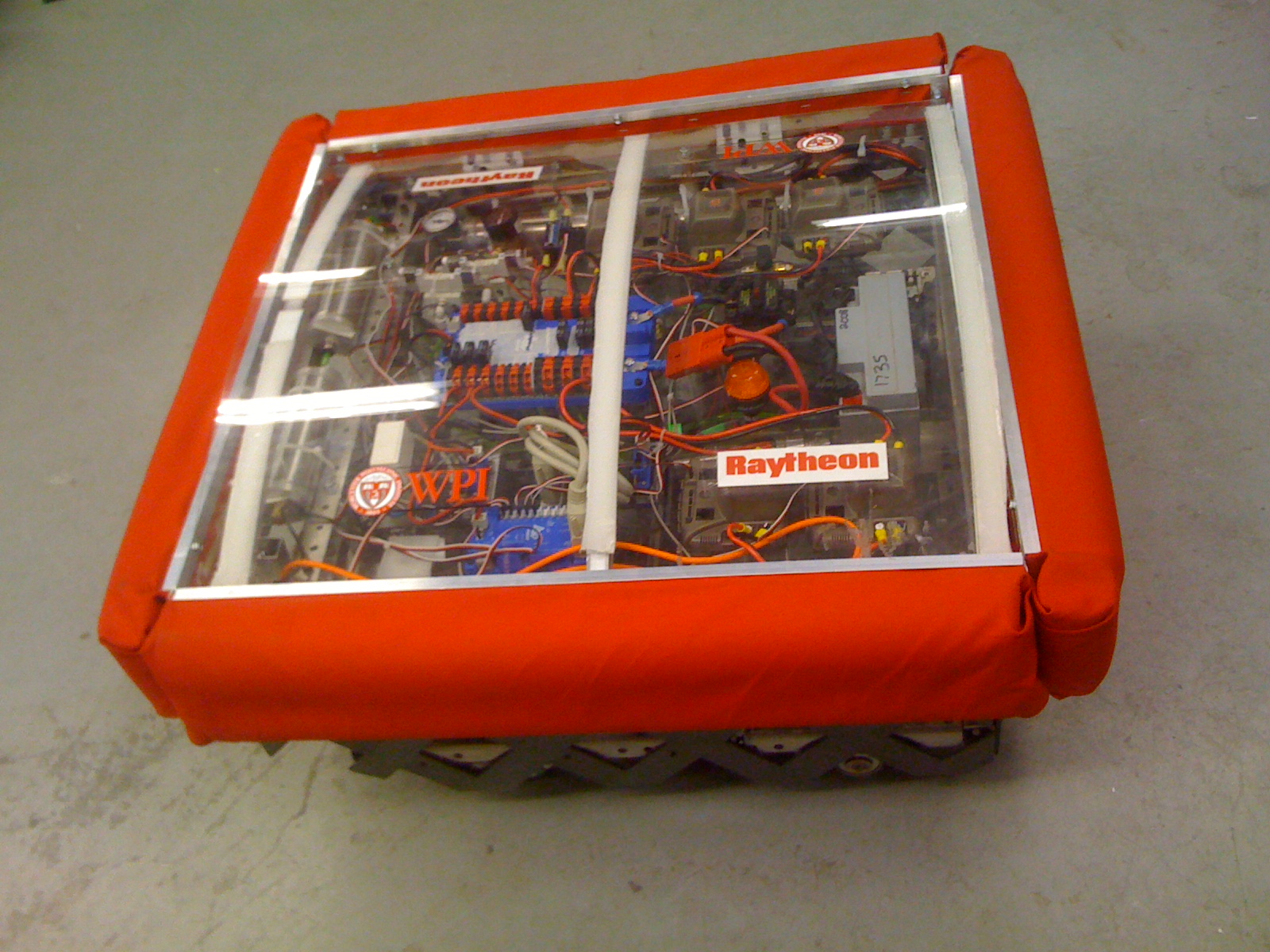

D-Fence 5.2

The wheel on the arm wasn’t able standup to the pressures it was under and for the off-season a new wheel was used to replace it.

Competitions Attended

  • WPI Regional
  • Championship
  • BattleCry@WPI 11
  • Mayhem in Merrimack

Awards Won

  • Industrial Design Award – WPI Regional
  • Finalist – WPI Regional
  • All that and a bag of Chips – Mayhem in Merrimack
